UncleJerm's Ecotec Smurf build
http://www.woodsbuggy.com/phpBB3/viewtopic.php?f=23&t=16626		 Page 1 of 1
Author:  UncleJerm76 [ Fri Jan 31, 2014 2:49 pm ]
Post subject:  UncleJerm's Ecotec Smurf build
Guess its time to start a build thread - for my own sake :D

Attachments:

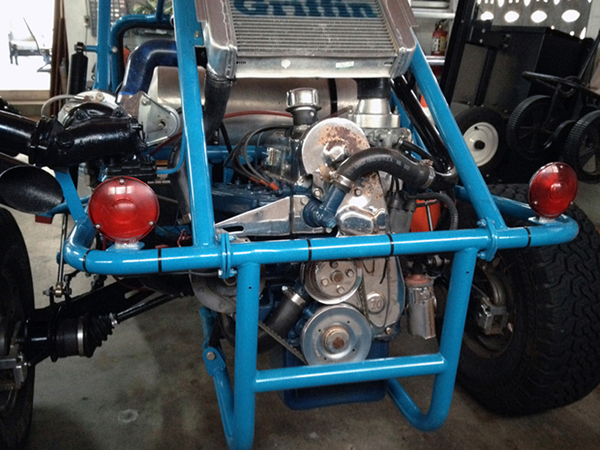

File comment: Ford 2.3l Turbo Lima engine
IMG_4874.JPG [ 269.22 KiB | Viewed 9282 times ]
File comment: The Lima stripped down and parted out on its way to greener pastures
IMG_5532.JPG [ 442.74 KiB | Viewed 9282 times ]
File comment: Shaun at AlphaFab Industries supplied the replacement; 2.4l Ecotec, Adapter, Flywheel, Wire harness & ECU with custom flash
IMG_5528.JPG [ 376.45 KiB | Viewed 9282 times ]
Author:  UncleJerm76 [ Fri Jan 31, 2014 3:11 pm ]
Post subject:  UncleJerm's Ecotec Smurf build
The Ford hung farther off back after being bolted to the trans, so the frame is going to need a little TLC to massage that LE5 in there. The Ecotec sitting more forward is a big plus tho, it will allows room to move the radiator behind the motor instead of blocking my rear vision since I plan on using this on the street a lot.

Attachments:
File comment: Shiney new parts. This baby is nice and light compared to the old iron block ford, after being stripped down it weighed 375lbs at the scrap yard
IMG_5543[1].jpg [ 269.51 KiB | Viewed 9274 times ]
File comment: Not going to be as simple as a drop in
IMG_5546.JPG [ 432.27 KiB | Viewed 9275 times ]

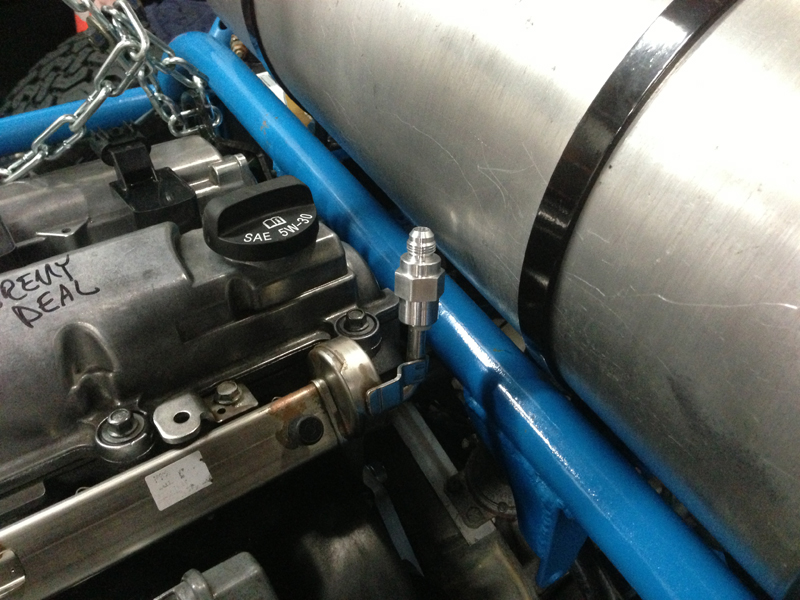

File comment: Touching bar - time to break out the Sawsall and operate
IMG_5548.JPG [ 357.6 KiB | Viewed 9275 times ]
Author:  Red Barron [ Fri Jan 31, 2014 6:27 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Scalpel doctor time for some cosmetic surgery. Looks good dude, must have been a tough decision for Ford man


Posted using the WoodsBuggy Mobile App
Author:  tommil77 [ Sat Feb 01, 2014 1:20 am ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Be sure to take careful notes; might have to do another swap in the no so distant future ;)
Author:  UncleJerm76 [ Tue Feb 11, 2014 12:28 pm ]
Post subject:  UncleJerm's Ecotec Smurf build
More room is needed to mount the radiator where I want it. Would also probably be a good idea to build a new rear motor cage to better fit radiator and fan.

Attachments:
RadiatorTestFit.jpg [ 453.16 KiB | Viewed 9108 times ]
Author:  UncleJerm76 [ Tue Feb 11, 2014 12:34 pm ]
Post subject:  UncleJerm's Ecotec Smurf build
Motor now fits great with room to spare. Next on the list is chopping up all the existing mounts, sliding motor/trans as far forward as the frame horns will allow.

Attachments:
NewMotorIsInSideView.jpg [ 515.18 KiB | Viewed 9099 times ]
NewMotor IsIn.jpg
NewMotor IsIn.jpg [ 454.24 KiB | Viewed 9102 times ]
Author:  ScramblerXLE [ Wed Feb 12, 2014 12:53 am ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Nice looking build sir!

Sent from my DROID4 using Tapatalk
Author:  UncleJerm76 [ Tue Apr 29, 2014 1:08 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Finally got some time to finish making rear trans mount over the weekend.

Attachments:
File comment: Made the template on PC and used construction paper to transfer to 1/4" plate.
IMG_5829.JPG [ 286.22 KiB | Viewed 8844 times ]

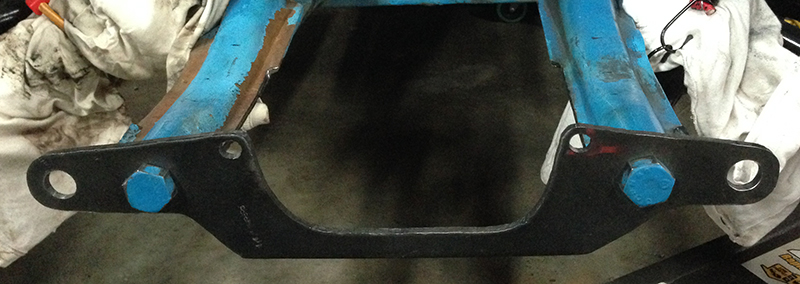

File comment: Test fit was perfect first go around.
IMG_5846.JPG [ 202.43 KiB | Viewed 8844 times ]
Author:  Twotrackerbryan [ Tue Apr 29, 2014 2:17 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Looks like it is coming together nicely.
Author:  ImmortalSoul219 [ Tue Apr 29, 2014 6:07 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Stay strong little three rib. I believe

What was the writing on the valve cover?
Author:  UncleJerm76 [ Tue Apr 29, 2014 6:43 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
ImmortalSoul219 wrote:
Stay strong little three rib. I believe

What was the writing on the valve cover?


Lol - I'm pressing my luck aren't I - you sir are paying close attention to the details. :P

...Just some writing on the valve cover from the shipper. [THUMBS UP SIGN]


Sent via TapaTalk
Author:  UncleJerm76 [ Thu May 01, 2014 1:04 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Finished fabricating the front trans mount using the same methods as the rear mount. 1/4" plate was overkill here but I already had it laying around. The two tabs on top are for the rear seat belts. Welding this sucker in there is going to be tight and tricky

Attachments:
File comment: The two tabs on top are for the rear seat belts.
IMG_5885.JPG [ 420.78 KiB | Viewed 8767 times ]
IMG_5886.JPG [ 428.51 KiB | Viewed 8767 times ]
File comment: Welding this sucker in there is going to be tight and tricky!
photo.jpg [ 434.3 KiB | Viewed 8767 times ]
Author:  UncleJerm76 [ Fri May 02, 2014 1:07 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Got the front trans mount welded in there and motor/trans mounted and finally hanging on its own. Gave the motor lift a long overdue break. LOL Motor sits exactly how I want it now - on the same plane as the bars - about 3°. Dropping from 10° to 3° also relieved some of the axle angle. Underneath the pan is still higher then the trans. Couldnt be happier.

Attachments:
File comment: Engine sits nice and even with bars at 3° - with old mounts it was 10° and kicked way up in the air.
IMG_5912.JPG [ 461.2 KiB | Viewed 8725 times ]
Author:  UncleJerm76 [ Fri May 02, 2014 1:20 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Oh and I picked up a 6 rib straight out of a bus from Randy - who was an awesome dude to chat with. Im blessed to have great friends like tommil77 to introduce me to his circle of buggy dudes. So ImmortalSoul219, that little 3-ribs life has been spared. :wink:

This means I need to sell my 3-rib soon which has at the very least 930 flanges (I don't believe those flanges are interchangeable with a 6 rib, is that correct???). It might have more done to it internally - but I don't know an easy way to check this without opening it up. If you do, please help me out. The 3 rib came with the buggy when I bought it and it was bolted to what I think was a non-running Ford 2.0 Lima engine.

Attachments:
File comment: Proud 6-rib owner now. Should be much better gearing for the 170+ hp.
IMG_5883.JPG [ 518.76 KiB | Viewed 8725 times ]
Author:  kyjr.buggy1 [ Mon May 05, 2014 12:05 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
I like that color.
Author:  UncleJerm76 [ Mon May 05, 2014 1:37 pm ]
Post subject:  UncleJerm's Ecotec Smurf build
kyjr.buggy1 wrote:
I like that color.


Ha, Ill bet you do - back at ya! ;) I think its some shade of Ford Tractor Blue - how about yours?
Author:  kyjr.buggy1 [ Mon May 05, 2014 3:06 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Mine is powdercoat from Caswell platings.
Author:  Alpha Fab [ Thu May 08, 2014 2:04 pm ]
Post subject:  Re: UncleJerm's Ecotec Smurf build
Looking Good Jeremy!
